In the world of elite automotive customization and race engineering, every cubic centimeter of space under the chassis is premium real estate, and every fraction of backpressure costs valuable performance. Achieving optimal power requires moving beyond off-the-shelf components toward advanced, mathematically optimized fluid dynamics. Ultimate Headers delivers this through a revolutionary approach to exhaust scavenging, blending proprietary engineering geometries with cutting-edge manufacturing processes. By reimagining how exhaust pulses interact and exit the engine, these systems unlock unprecedented power, a refined acoustic signature, and flawless fitment for the world’s most demanding custom builds.
Advanced Exhaust Scavenging Technology: The Z-Pipe Crossover
The cross-over junction is the heart of a dual-bank performance exhaust system. Its primary role is to balance pressure waves between the left and right cylinder banks, using the high-velocity pulses from one side to pull along—or “scavenge”—the spent gases from the opposing side. While the industry has relied on standard configurations for decades, the Ultimate Cross-Over series introduces the Z-pipe: a highly sophisticated multi-channel geometric pathing system that forces a near-100% mixture of exhaust gases while maintaining maximum velocity across the entire RPM band.
Why Traditional X-Pipes and H-Pipes Restrict Velocity
To understand the breakthrough of the Z-pipe, it is vital to analyze where traditional cross-over variants fail in high-performance applications:
The Traditional H-Pipe: An H-pipe connects the two main exhaust lines with a basic, perpendicular balance tube. While it helps deep, low-end muscular tones, it does very little for high-RPM scavenging. The passing exhaust gases slam into a 90-degree intersection, creating localized pockets of extreme internal turbulence and flow restriction rather than a smooth, continuous draw.
The Traditional X-Pipe: An X-pipe improves high-RPM scavenging by merging the two exhaust streams directly at a single, central crossover point. However, this configuration inherently creates an oversized expansion chamber at the junction. As high-velocity exhaust gases transition from a narrow tube into this larger chamber, they rapidly expand, lose pressure, and slow down. This drop in gas velocity results in mid-range power bottlenecks and introduces a harsh, high-pitched interior “rasp.”
The Z-pipe geometry entirely bypasses these compromises. Instead of slamming together or dumping into a large open chamber, each incoming exhaust pipe is split into two separate channels, creating four temporary fluid paths. One channel from each bank crosses over to the opposite side like a precision partial “X”, while the parallel channels continue straight. When these four paths perfectly recombine into the two outgoing pipes, a complete, homogeneous mixture of exhaust gases is achieved without a single drop in localized gas velocity.
Metal 3D-Printed 316L Stainless Steel Precision Fitment
Historically, executing a complex, four-channel fluid matrix under a car was nearly impossible due to spatial constraints. Bulky, traditional fabricated crossovers require significant vertical and horizontal clearance, forcing custom builders to either sacrifice precious ground clearance or abandon optimal scavenging entirely.

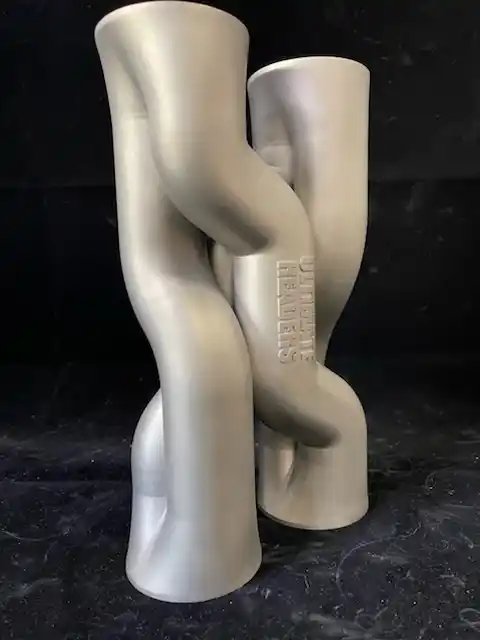

The Ultimate Cross-Over – Low Profile Edition resolves this engineering paradox through state-of-the-art metal 3D printing utilizing premium 316L stainless steel.

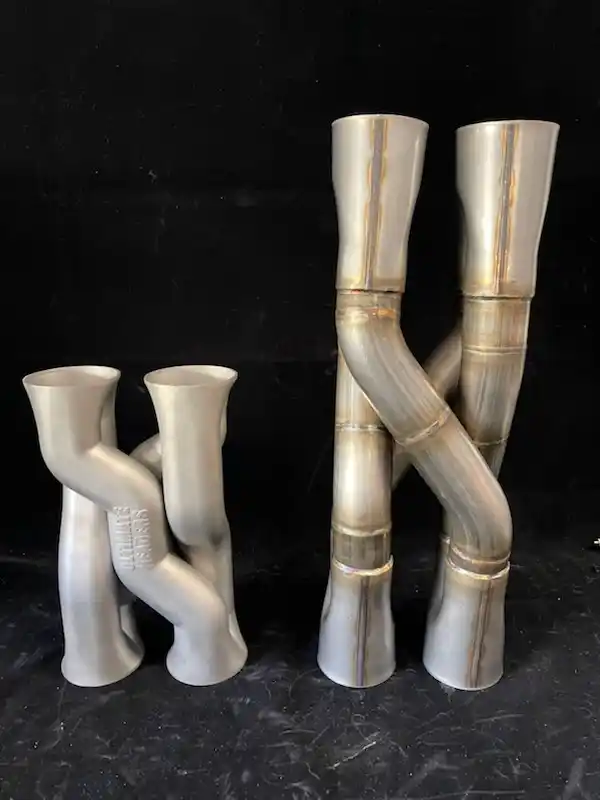

Unlike traditional tubular components that are limited by the physical constraints of mandrel tube bending and weld-cluster clearances, additive manufacturing allows for a true, highly optimized engineering shape. This structural architecture produces an ultra-low profile, highly flattened layout that delivers unmatched under-chassis clearance. By maintaining a perfectly consistent internal pipe diameter throughout its flattened orientation, the 316L printed component maximizes localized fitment while guaranteeing unrestrictive, maximum flow velocity across your entire RPM band.
Custom Performance Headers for Elite Automotive Builders
An optimized crossover is only as effective as the headers feeding it. Elite custom vehicle builders and professional racers choose performance headers that treat exhaust management not merely as plumbing, but as a critical extension of the engine’s combustion cycle. By pairing advanced design with premium materials, these headers eliminate primary tube restrictions and turn exhaust energy into measurable performance.
Maximizing Wheel Horsepower and Mid-Range Torque
The primary objective of premium header engineering is the immediate optimization of fluid dynamics to increase volumetric efficiency. Controlled dyno testing of the Ultimate Cross-Over series validates these engineering principles with definitive, real-world data:
+25 Wheel Horsepower Gains: By maintaining uniform gas velocity and eliminating the pressure drops common to traditional systems, dyno verification confirms an impressive jump of up to +25 wheel horsepower in high-performance configurations.
Enhanced Throttle Response: The rapid extraction of exhaust gases ensures that the combustion chambers are completely cleared of spent particles before the next intake stroke, resulting in instantaneous, crisp throttle response.
Robust Mid-Range Torque: While traditional X-pipes often suffer from a torque dip in the mid-RPM range due to gas expansion, the uniform velocity of the Z-pipe architecture fills out the torque curve exactly where performance vehicles spend the majority of their track or street time.
Engineered Stainless Steel Durability for National & International Tracks
Track conditions subject exhaust components to extreme vibrational stress and thermal cycling, with internal temperatures frequently exceeding 1,200°F. Under these punishing conditions, inferior materials scale, warp, or crack at stress points and weld joints.
To ensure absolute structural integrity on both national and international tracks, our core fabricated systems are engineered exclusively from premium stainless steel, while our low-profile crossovers leverage the exceptional thermal and corrosion resistance of 316L stainless steel.
Hand-TIG-Welded Strength: Fabricated components feature meticulous hand-TIG welding throughout, creating uniform weld beads that handle continuous high-load vibrational resonance without stress-cracking.
Thermal Stability: The specialized material properties of our premium stainless steel alloys resist thermal expansion and scaling, ensuring that the critical internal dimensions and smooth surface finishes remain perfectly intact over years of competitive racing.
Exotic, Refined Acoustic Profile: Beyond raw structural durability, the dense wall properties of these premium materials eliminate thin-wall resonance. The result is a distinctive, balanced, and deeply aggressive “muscular” exhaust note that delivers an F1-inspired, refined tone, completely free of harsh, unrefined rasp.
