Swap Headers,
GM A-Body, 1964-1972

Ultimate Headers now brings our swept back design with “Muscular Elegance” to the fans of the popular General Motors LS-series engines to power their street rods, custom cars and trucks.

This allows the LS-series engines to go between the fame rails of roadsters and other street rods, custom cars and classic trucks with a header system that addresses clearance issues, along with delivering the unique, eye candy appeal of the Ultimate Headers look.

Plus, you get a complete package – headers, ARP 12-point Stainless Steel header bolts, a pair of matching Cometic HTS header and HTS Collector Gaskets (if applicable).

Swap Headers
Print Page
Request More Info
1.440.234.9600 TO ORDER
  • Patented design (U.S. Patent US D700,554 S)
  • Includes premium corrosion and heat-resistant ARP (Automotive Racing Products) 12-point, 300 grade stainless steel bolts and washers
  • Large (1-7/8”) 321 Stainless Steel header tubes
  • Header tubes are mounted high and tight, makes a very compact, space efficient package
  • Package includes everything needed for the installation — headers, ARP 12-point Stainless Steel bolts & washers and Cometic MLS (Multi Layer Stainless) header

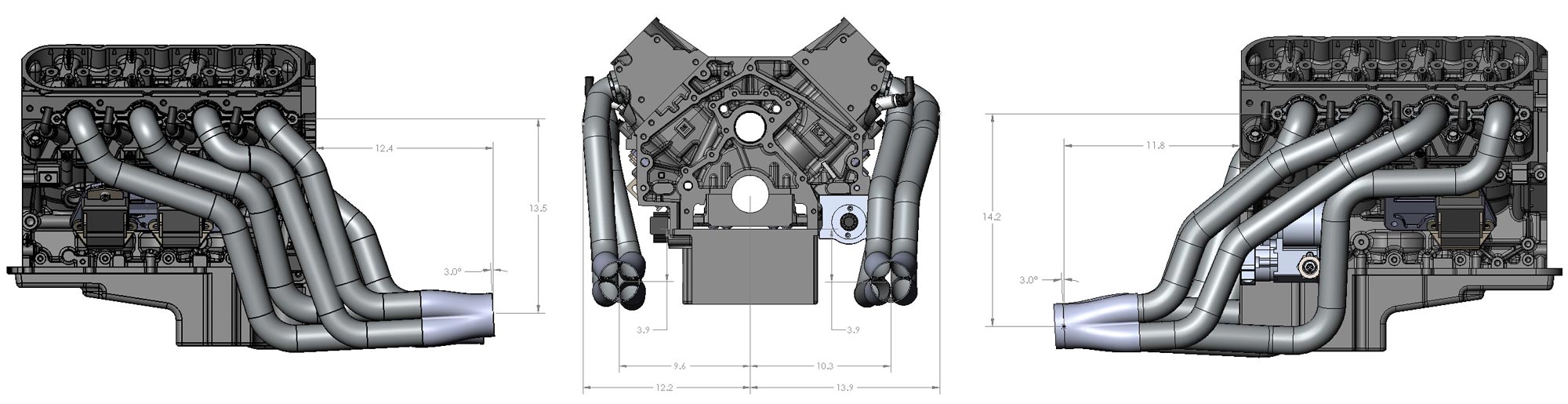

Click on image to enlarge

GM A-Body, 1964-1972

Applications:

  • GM A-Body, 1964-1972
Part Number Tube Diameter Tube Gauge Finish List Price
For 64-67 Model Year Cars
102081 1-7/8″ 18 gauge Mill $1,195.00
102082 1-7/8″ 18 gauge Satin $1,749.00
102083 1-7/8″ 18 gauge Mirror Polish $2,149.00
102084 1-7/8″ 18 gauge Ceramic Coated Silver $1,649.00
102085 1-7/8″ 18 gauge Ceramic Black Coated $1,649.00
For 68-62 Model Year Cars
102191 1-7/8″ 18 gauge Mill $1,195.00
102192 1-7/8″ 18 gauge Satin $1,749.00
102193 1-7/8″ 18 gauge Mirror Polish $2,149.00
102194 1-7/8″ 18 gauge Ceramic Coated Silver $1,649.00
102195 1-7/8″ 18 gauge Ceramic Black Coated $1,649.00
As cast flange/mill finish on tubing Satin flange/satin finish on tubing Mirror flange/mirror finish on tubing Mirror flange/silver ceramic on tubing Mirror flange/black ceramic on tubing
As cast flange/
mill finish on tubing
Mirror flange/
satin finish on tubing
Mirror flange/
mirror finish on tubing
Mirror flange/
silver ceramic on tubing
Mirror flange/
black ceramic on tubing
